Display cover glass screen printing machine production line

Application solution of display cover glass production line

Photoelectric display industry

Click demo

Customer product

The home applainces colorful glass (max 800mm*1200mm, min 300mm*300mm, thickness 3 ~ 8mm) is commonly used for refrigerator panel glass, air conditioning panel glass, etc.

Customer product

The home applainces colorful glass (max 800mm*1200mm, min 300mm*300mm, thickness 3 ~ 8mm) is commonly used for refrigerator panel glass, air conditioning panel glass, etc.

Operating environment of equipment

Partition wall treatment shall be done in the overall workshop to isolate multiple IR dryers as a whole. The screen printing workshop is recommended to adopt a 10000 level dust-free purification workshop with constant temperature (20-28 ℃) and humidity (40-60%). The personnel shall wear dust-free and anti-static suits, and the air in the workshop is positive pressure; The IR dryer workshop is recommended to well prepared for waste disposal, and the air in the workshop is negative pressure.

Production line specification

Machine function

It is used for household appliance glass printing, connection drying, automatic sheet feeding, automatic fine positioning, automatic printing and processing, and automatic glass unloading.

Production l ine advantages

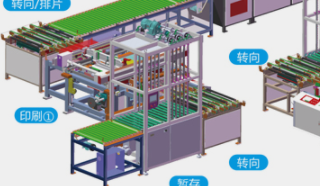

The intelligent factory of the five color glass printing production line is composed of seven areas and 42 processes according to the front section: feeding - cleaning; Printing section 5: conveying - Printing - film arrangement - drying - water cooling - conveying - film storage; Rear segment; Laminating - blanking is divided into seven areas.

Technical process

Home appliance glass color crystal (logo/ window - wiredrawing / varnish / finish - primer - primer) printing process: film feeding - fine positioning - shuttle transportation - Printing - glass unloading.

Production line structure and process

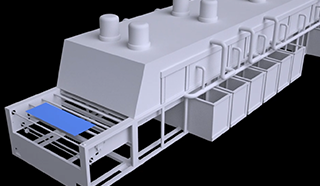

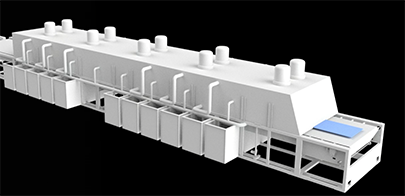

6 sets of automatic screen printing machines; 6 tunnel drying furnaces; 1 glass washer; 6 water coolers; 6 steering conveyors; 2 belt conveyors; 6 tablet setters; 4 sets of fast and slow conveyors; 4 film storage machines; 1 set of conveyor; 1 film covering machine. This production line realizes the production of glass from the blank, the production line with additional cost realizes the production of glass from the blank, the production line with additional cost realizes the production of glass from the blank, the production line with additional cost realizes the production of glass from the blank

Manual or automatic loading

Automatic feeding area:

Automatic feeding machine or manual horizontal loading of glass.

Washing

Glass clean area:

Glass surface clean.

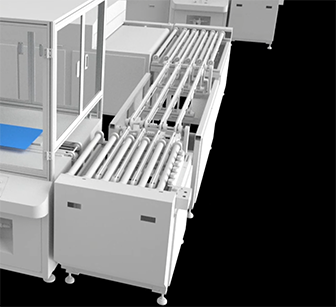

Direction change conveying

Direction change conveyiing area:

Single chip input becomes 90 degree right angle output, so that the conveying direction of the product becomes short edge leading.

Fast/Slow speed conveying

Belt conveying area:

Quickly extend the distance the previous glass from the next galss.

人工放片或自动上料

自动上料机区：

自动上料机或者人工横向放置产品

清洗

玻璃清洗机区：

玻璃表面洁净

转向输送

转向输送机区：

单片输入变成90度直角输出，使产品的输送方向变成短边先行。

快慢速输送

皮带输送机区：

迅速拉开前列产品与后列产品的距离

Production line advantages

Land smart factory is a comprehensive integration of all technological processes and human and equipment factors in production and manufacturing,

The visual management of the machining process is realized by the comprehensive collection and real-time collection and analysis of data.

Through intelligent software products and services, improve production efficiency and maximize the benefits to customers.

Land smart factory has the following advantages: efficient production process, excellent quality assurance, comprehensive equipment management and simplified staffing.

The details are as follows:

Efficient production and processing

Significantly improve the glass cutting rate, loading rate, circulation speed and pairing efficiency, so as to greatly improve the production efficiency

Effective cost control

Compared with the traditional glass deep processing plant, it occupies a smaller area and employs fewer workers, greatly reducing the operating cost.

Stable improvement of quality

The glass moves automatically in the production line without stains and damages caused by personal contact. At the same time, the best production process is automatically selected and adjusted by using big data and artificial intelligence technology to achieve high-quality and high-efficiency continuous production

Process networking control

With 24-hour uninterrupted operation, glass products of similar specifications in different orders can be combined and produced according to the optimal effect to achieve the best quality and efficiency.
